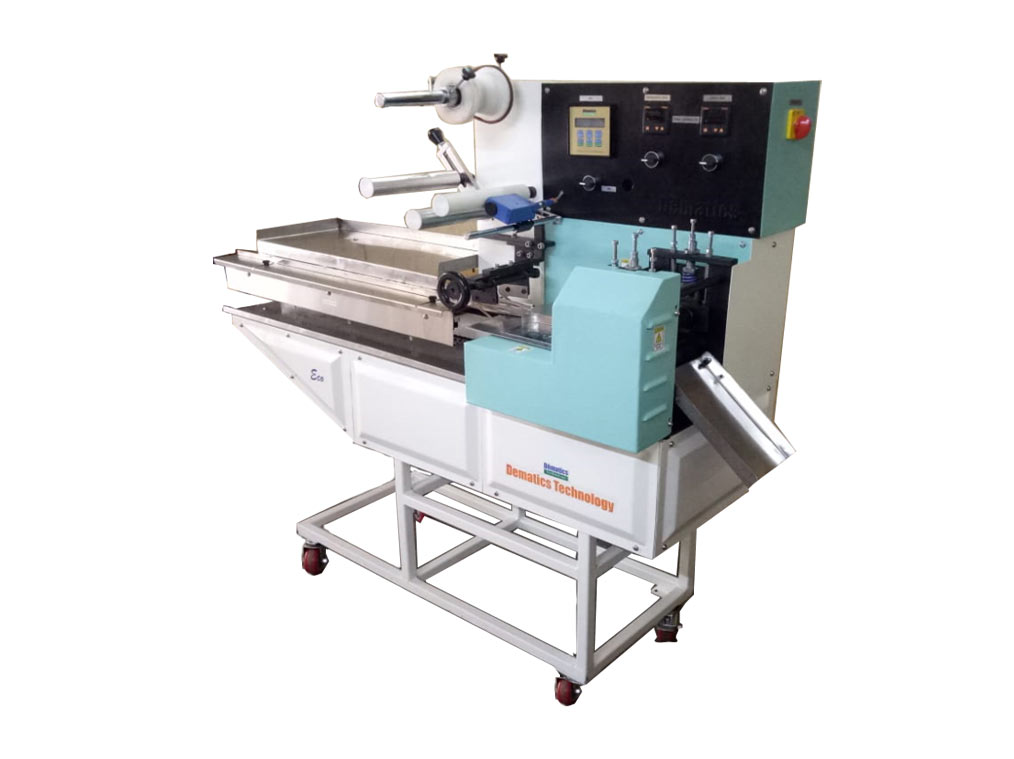

Mini Flow Wrap Machine

About Mini Flow Wrap Machine Features
Products that have to be packed should be placed on the tray in a particular order. They will be taken inside by the machine, packed and the packed item will be sent out through the outlet. Our mini flow wrap machine has been developed after extensive research, hence will show impressive performance no matter how extensively it is used.

When it comes to product packing, the output must be carried out to perfection as only then will customers feel attracted to buy the item. Information about the item is on the packing's exterior and the contents inside are protected by the outer covering.  You will find our mini flow wrap machine to be economically priced, bringing down the costs involved in labor intensive packing activity.  Through a set of simple and easy-to-use controls, packing can be done effortlessly. It has a compact size, hence will take up very little floor space.

At the time of product pack sealing, the task must be done accurately so that the product is protected from the effects of external elements. Look into our mini flow wrap machine to do such packing according to expectations. It can pack items of various shapes, sizes according to given specifications and through automatic feeding and dispensing, the resulting packed product is very good. Through this machine, you can get products packed on time in large quantities for dispersal to the retail outlet.

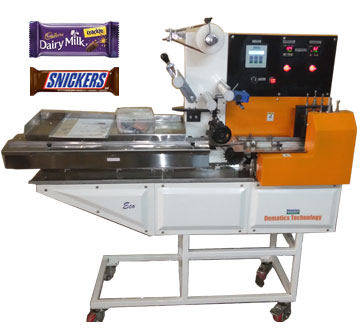

Our machine's design is such that it does not require much maintenance and since it is made from high quality stainless steel, it is strong and long-lasting.  Some of the many items that can be packed using it include candles, chocolates, soap, cake, biscuits etc.  Using the PID temperature controller, the items are packed quickly, accurately so that they come out perfectly. Look into our latest model and call us to place an order. You will find out machine to be compact, leightweight and inclusive of simple controls that makes working with it easy.  Through this machine a large number of products can be packed quickly, efficiently and in the shortest possible time. Order your mini flow wrap machine now and get it at a low price!

SPECIFICATION : For PLC Base with TRIO Servo System.

1. The working parts of the machine coming in contact with the product and packing material will be stainless steel 304. Frame, mounting table & side covers are in CRC with powder coated.
2. Foil Feeding arrangement.
3. Adjustable foil folding unit.
4. Foil Angle setting arm.
5. Product feeding conveyor with food grade nylon lugs (pushers).
6. Mechanical clutch for products center setting.
7. Slow-Fast unit for fine sealing & cutting.
8. Center sealing (longitudinal) unit operated by SERVO MOTOR (make - TRIO MOTION TECHNOLOGY)
9. Cross sealer or end sealing unit with heater mounted on common shaft and sealing jaws carrying zig-zag knives.
10. Drive: Gear motor - 0.5 HP, 3ph AC motor.
11. Machine speed: The machine speed will have up to the 60 - 100 packs/min. For PLC Base with TRIO Servo System.

12.Electrical Control panel consisting of:
a. Micro Base Controller PLC
b. Digital Scanner for eye mark correction
c. AC Serco Motor & Servo Drive. (make-TRIO MOTION TECHNOLOGY)
d. Encoder (make - BTH)
e. 2 nos. PID temperature controller -digital type (make - SELEC)
f. Main Switch Siemens make (MCB)
g. VFD (1ph to 3ph) (make-TRIO MOTION TECHNOLOGY)
h. SMPS (make-TRIO MOTION TECHNOLOGY)
i. SSR for start for motor and heater.

• Note: Pouch cut length will be change by entering the division from 60 mm to 200 mm.

Product to be pack -
Length: min. 25 mm (1") to max. 150 mm (6")
Width : Min. 12.5 mm (1/2") to Max. 65 mm (2.5")
Height : up to 33 mm (1.25")
OR Foil open width not more than 200 mm

• Power Consumption Only 500W

Product to be filled

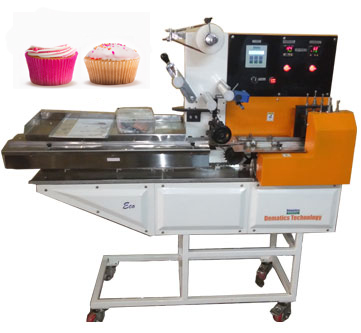

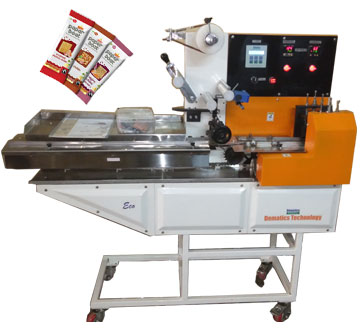

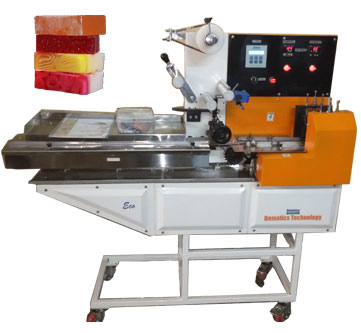

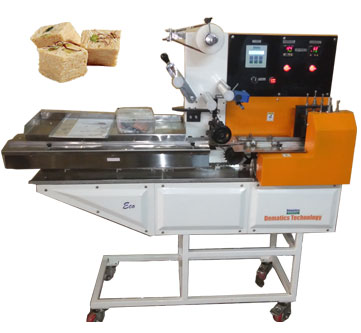

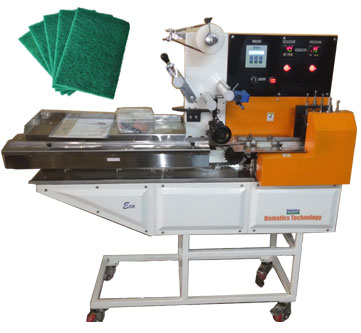

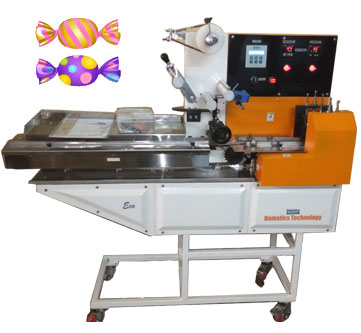

This model is suitable for packing various solid products having fixed shape and carrying edge single or piled together namely cake, Bread, Biscuits, Candies, Sweets, Maggi, Meat and fish pieces, ice candy bars, cheese slabs, fruits, wet wipes, soap, detergent cake, scrubber pads, bearings, hardware items, files, tablet strips, tubes, sachets, small leaflets, tazo, cards, tattoos, mosquito coils, bars, chikki, deodorant cakes etc.

Printed packing roll
This model is suitable for either without printed packing material or continuous printed packing material with photocell mark

Description of Machine
This machine is Horizontal Form Fill Seal Machine suitable to pack single piece or pack of multiple pieces piled fit on each other. Feeding system is pawl chain conveyer where operator will keep one product manually. Auto feeding systems can be fitted on this machine(optional)

The film is drawn by two pairs of rollers and the same also seal the film at the bottom at the same time. Sealing system is a continuous heating system. Dish Type Heaters fitted in the desired size metal heaters and the heating is controlled by temperature controller.

At the folding box packing roll formed in a shape of tube and product is inserted in this tube by feeding conveyer. Product is wrapped by the packing material and carried up to the horizontal sealers. A pair of horizontal sealer then seals and cut the pouch. Packed pouches will come out on out feed conveyer

Main features

• Mini model takes minimum space of shop floor
• Economical price than standard model
• Electrical consumption very less
• Mechanical machine, minimum maintenance
• Trouble free operations
• User friendly for operations
• Changeover from one part to other is very easy
• Independent PID temperature controllers for sealing and cutting

System Micro Based PLC Controller with TRIO Servo System
Machine output : Maximum speed up to 60 packs per minute depending on gravity flow properties of the product and accuracy of filling
Film Width Maximum 200 mm open width
Film roll diameter Maximum 300 mm OD, 75 mm core ID
Pouch width Maximum 80 mm
Pouch length Minimum 60 mm to Maximum 200 mm
Film Width Maximum 200 mm open width
Film roll diameter Maximum 300 mm OD, 75 mm core ID
Pouch width Maximum 80 mm
Pouch length Minimum 60 mm to Maximum 200 mm
Product height Maximum 25 mm
Packing Material : Machine is designed for most types of Heat Sealable Laminate up to maximum of 60 macron gauges.
Machine control : Simple electrical panel with PID type temperature controllers
Main drive : Complete mechanical base machine all sealing, cutting and feeding system synchronized by gears and chain drives interlocked with each other.
Electrical Data
Power supply: Single Phase 230V AC
Power Consumption : 1 kw.
Motor Drive : 0.5 Hp, 230 VAC, 50 Hz, 3 phase AC. Operating by VFD (TRIO) 1ph to 3ph.
Heaters :
150 Watt X 2 heaters for vertical sealing and 200 watt X 2 heaters for horizontal sealing-cutting
Temperature controller : Select make PID controller
Machine size : 66" x 27" x 58" (L X W X H)
Net Weight of machine : 125 Kilogram
